SS Sanitary Tube Fittings, SS 304 Sanitary Tube Fittings, SS Sanitary Fittings, Dairy Fittings Manufacturer in India

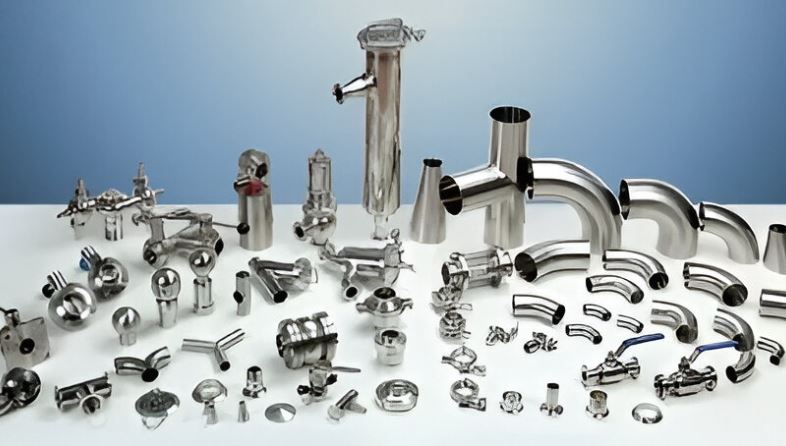

Hans Pipe Fittings is a leading Dairy Fittings Manufacturer in India, All our products are well manufactured to ensure they meet or exceed the cleanliness levels demanded in the industry. The fittings we supply include elbows, tees and reducers and clamps allowing a smooth and efficient flow to and from food and dairy processing plants. Our Dairy Fittings are produced in material grade including SS 304, SS 304L, SS 316 and SS 316L to promote strength and resistance to corrosion.
Applications of our Dairy Fittings are found in the milking process, cheese production, and the making of yogurt. Since the materials are smooth-surfaced, these fittings are well suited to hygienic piping systems, and assure leak-tight connections without compromising product quality. For instance, the SS 316L grade is particularly recommended for use in dairy plants owing to its ability to withstand the effects of the acids used in the processing of dairy products.
Dairy Fittings Grade and Specification
| Outside Diameter | 1/4” O.D. – 8” O.D., 1/4” N.B. – 8” N.B. |
| Sizes | 1/4" to 6" |
| Range | Dairy Bends, Dairy Tee, SMS Union, DIN Union, TC Ferrule, Dairy Reducer, TC Clamps, Pipe Holder Clamp,Hose Clamps, Tri Clamp Tee, SS Spray Balls, Tri Clamp Elbow, Tri Clamp Reducer. |
| Thickness | 1.5mm TO 3mm, 12 SWG, 14SWG, 16 SWG |
| Grade | SS 304, SS 304L, SS 316 , SS 316L |
| Standards | DIN / SMS / IDF /BSP / NPT / TRICLOVER |
| Finish | Mechanical Polish, Electro Polished, Non Electro Polished, 320 Grit, 400 Grit, 500 Grit, 800 Grit |
ANSI B 16.9 SS High-Pressure Pipe Fittings, Dairy Fittings Manufacturer in India
Hans Pipe Fittings is one of the biggest Dairy Fittings Manufacturer and Supplier in India, These fittings work well with systems that require automatic cleaning as well as those that need to be done manually so that there is little disturbance in cleaning operations. In addition to the dairy industry, our fittings are used in the production of beverages, foodstuffs, and medicines owing to their industrial strength and durability.
After gaining experience in the market and our devotion to changing for the better and being innovative, Hans Pipe Fittings has come to be known as a reputable company. The quality of the products for sale is always maintained to meet the requirements of markets whose products need to be handled with sanitary fittings. Further, we are supplying clients all over India with our wide portfolio of SS 304 and SS 316 dairy fittings for various applications.
Type Of Pipe Fittings Available At Hans Pipe Fittings
Dairy Fittings Dimensions
| NOMINAL CLAMP SIZE | LENGTH C (MM) | FLANGE Ø (MM) | RAD. B (MM) | WIDTH W (MM) | MASS (KG) |
| 1/2"-3/4" | 60.0 | 25.0 | 63.0 | 17.0 | 0.13 |
| DN 10/15/20 | 69.0 | 34.0 | 73.0 | 17.0 | 0.17 |
| 1"-1 1/2" | 85.0 | 50.5 | 78.0 | 17.0 | 0.21 |
| 3" | 126.0 | 91.0 | 96.0 | 17.0 | 0.42 |
| 3 1/2" | 140.0 | 106.0 | 103.0 | 17.0 | 0.44 |
| 4" | 154.0 | 119.0 | 110.0 | 17.0 | 0.51 |
| 2" | 99.0 | 64.0 | 82.0 | 17.0 | 0.25 |
| 2 1/2" | 112.0 | 77.5 | 89.0 | 17.0 | 0.35 |
| 4 1/2" | 165.0 | 130.0 | 115.0 | 17.0 | 0.60 |
| 6" | 216.0 | 167.0 | 134.0 | 25.0 | 0.88 |
Types of Stainless Steel Buttweld Fittings
- 316L Marine Grade Stainless Steel Dairy Tube Fittings
- Stainless Steel Dairy Food Grade Blind Cap Ferrule Tube Pipe Fitting Hygienic Blank
- Stainless Steel 304 Dairy Fitting, Unpolished Weld Short Tee, 1-1/2" Tube Od
- Dairy Stainless Steel DIN 45 Degree Dull Polished Forged Weld Short Elbow Pipe Fitting
- 3PC Tri Three Pin Pipe Clamp Dairy Stainless Steel Fitting
- Stainless Steel Dairy Ferrule Ends Hose Adapter Fitting
Application of Dairy Fittings Fittings
- Food & Pharma industry
- Solar industry
- Petrochemical industry
- Automotive industry
- Construction industry
- Oil and Gas industry
- Paper & pulp Industries
- Water and sewage systems
- Aviation engine components
- Nuclear industry
