ASTM A403 Fittings and Stainless Steel Buttweld Elbow Manufacturer & Supplier in Bangalore
Hans Pipe Fittings is one of the most highly acclaimed Stainless Steel Pipe Fittings Manufacturers in Bangalore, Through the high quality of our products, our company has effectively created its market and assertiveness throughout Bangalore. Established in Bangalore city, it’s our quest and honor to provide long-lasting and sound products and solutions suited to the needs of the customers in Bangalore.
These buttweld elbows that we produce are engineered to efficiently permit the fluids to flow in the industrial applications available in Bangalore. Used for pipes in Bangalore′s factories and power plants construction and other structures our buttweld elbows provide near-perfect performance. Our team in Bangalore makes it a point to guarantee each product has met international standards as a way of preparing for the competitiveness of the market in Bangalore.
Stainless Steel Pipe Fittings Grade and Specification
| Stainless Steel Grades | 304 ,316, 321, 317L, 310 , 347 , 904L |
| Size Range | 1/8” NB – 48” NB |
| Schedules | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, XXS,100, 120, 140, 160 |
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
| Type | Welded , seamless, fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43 |
ANSI B 16.9 SS High-Pressure Pipe Fittings, Stainless Steel Pipe Fittings Manufacturer in Bangalore
Hans Pipe Fittings is a well-known Stainless Steel Pipe Fittings Manufacturers and Supplier in Bangalore. The establishment of our company in Bangalore has boosted its production of quality products to meet the needs of several industries. We are based in Bangalore and doing business with clients in Bangalore our solutions are built to stand the test of time hence becoming very reliable.
at Hans Pipe Fittings the customer is assured of delivery of products on time, exceptional backing and very reasonable prices. In Bangalore, For all your needs of ASTM A403 fittings and stainless steel buttweld elbow in Bangalore please associate with us.

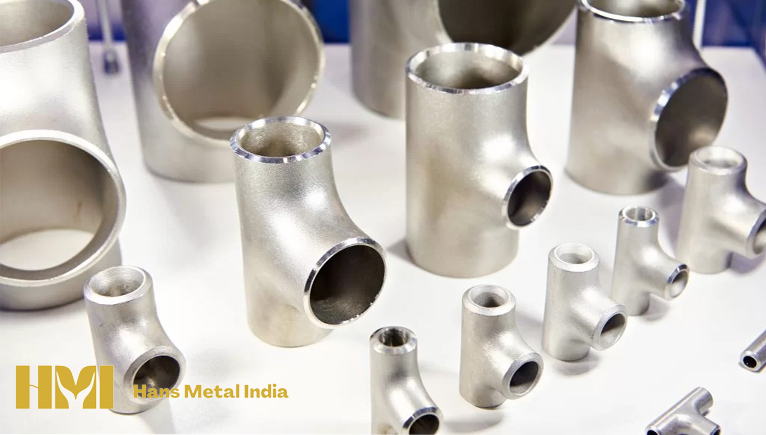

Type Of Pipe Fittings Available At Hans Pipe Fittings
Stainless Steel Pipe Fittings Chemical Composition
| Type | Manganese | Carbon | Phosphorus | Silicon | Sulphur | Chromium | Molybdenum | Nickel |
| 309 | 2.00 | 0.20 | 0.045 | 1.00 | 0.030 | 22.00/24.00 | – | 12.00/15.00 |
| 302 | 2.00 | 0.15 | 0.045 | 1.00 | 0.030 | 17.00/19.00 | – | 8.00/10.00 |
| WP304L | 2.00 | 0.03 | 0.045 | 1.00 | 0.030 | 18.00/20.00 | – | 8.00/12.00 |
| 309S | 2.00 | 0.08 | 0.045 | 1.00 | – | 22.00/24.00 | – | – |
| WP304 | 2.00 | 0.08 | 0.045 | 1.00 | 0.030 | 18.00/20.00 | – | 8.00/10.50 |
| 317 | 2.00 | 0.08 | 0.045 | 1.00/1.00 | 0.030 | 18.00/20.00 | 3.00/4.00 | 11.00/15.00 |
| WP316 | 2.00 | 0.08 | 0.045 | 1.00 | 0.030 | 16.00/18.00 | 2.00/3.00 | 10.00/14.00 |
| WP310s | 2.00 | 0.08 | 0.045 | 1.5 | 0.030 | 24.00/26.00 | – | 19.00/22.00 |
| WP310 | 2.00 | 0.25 | 0.045 | 1.5 | 0.030 | 24.00/26.00 | – | 19.00/22.00 |
| 347 | 2.00 | 0.08 | 0.040 | 0.5/1.00 | 0.030 | 17.00/19.00 | 0.5/0.75 | 9.00/12.00 |
| WP316L | 2.00 | 0.03 | 0.045 | 1.00 | 0.030 | 16.00/18.00 | 2.00/3.00 | 10.00/14.00 |
| WP317L | 2.00 | 0.03 | 0.045 | 0.75 | 0.030 | 18.00/20.00 | 3.00/4.00 | 11.00/15.00 |
| WP321 | 2.00 | 0.08 | 0.040 | 1.00 | 0.030 | 17.00/19.00 | 0.75/0.75 | 9.00/12.00 |
Stainless Steel Pipe Fittings Mechanical Properties
| Type | Hardness (Rockwell B) max |
Tensile (ksi) min |
UNS | Yield (ksi) min |
Hardness (Brinell) max |
Elongation min |
| 347 | 88 | 75 | S34700 | 30 | 183 | 40% in 2″ |
| WP304 | 88 | 75 | S30400 | 30 | 183 | 40% in 2″ |
| 302 | 88 | 75 | S30200 | 30 | 183 | 40% in 2″ |
| WP304L | 88 | 70 | S30403 | 30 | 183 | 40% in 2″ |
| 309S | 95 | 75 | S30908 | 30 | 217 | 40% in 2″ |
| 309 | 95 | 75 | S30900 | 30 | 217 | 40% in 2″ |
| WP310 | 95 | 75 | S31000 | 30 | 217 | 40% in 2″ |
| WP316 | 95 | 75 | S31600 | 30 | 217 | 40% in 2″ |
| WP310s | 95 | 75 | S31008 | 30 | 217 | 40% in 2″ |
| WP316L | 95 | 70 | S31603 | 25 | 217 | 35% in 2″ |
| WP317L | 95 | 75 | S31703 | 30 | 217 | 35% in 2″ |
| 317 | 95 | 75 | S31700 | 30 | 217 | 35% in 2″ |
| WP321 | 88 | 75 | S32100 | 30 | 183 | 40% in 2″ |
Other Types of Stainless Steel Buttweld Fittings
- Stainless Steel Buttweld Elbow Stockist in Bangalore
- Stainless Steel Pipe Elbow Supplier in Bangalore
- Stainless Steel Equal Tee Dealer in Bangalore
- SS Butt weld Cross Stockist in Bangalore
- ANSI B16.9 SS Welded Elbow Supplier in Bangalore
- Stainless Steel Reducer Exporter Dealer in Bangalore
- SS Pipe Fittings Stockist in Bangalore
- Stainless Steel Pipe Fittings Supplier in Bangalore
Application of Stainless Steel Pipe Fittings
- Food & Pharma industry
- Solar industry
- Petrochemical industry
- Automotive industry
- Construction industry
- Oil and Gas industry
- Paper & pulp Industries
- Water and sewage systems
- Aviation engine components
- Nuclear industry
